Environmental Bike (2020)

The Environmental Bike is a sonic bike that makes sound and music through live sonification of air pollution as you cycle.  It was inspired by FoAM-Kernow‘s work on the Sonic Kayak with Matthews during 2016-19 and was built in our Berlin studio during COVID lockdown 2020.

Invited to present at Lisboa Soa sound art festival 2020, the BRI saw this as an ideal situation in which to run an interactive and open research lab to develop the system with the participation of local cyclists. Performing out of the Campo Mártires da Pátria park, the lab was run daily by bicrophonic artists Lisa Hall, Kaffe Matthews and Federico Visi with hardware built by Sukandar Kartadinata, Berlin and ongoing consultation from Amber and Dave Griffiths FoAM-Kernow, UK.  22 – 27.09.20.

envirobikelabwork3
2020-09-23-12.53.52

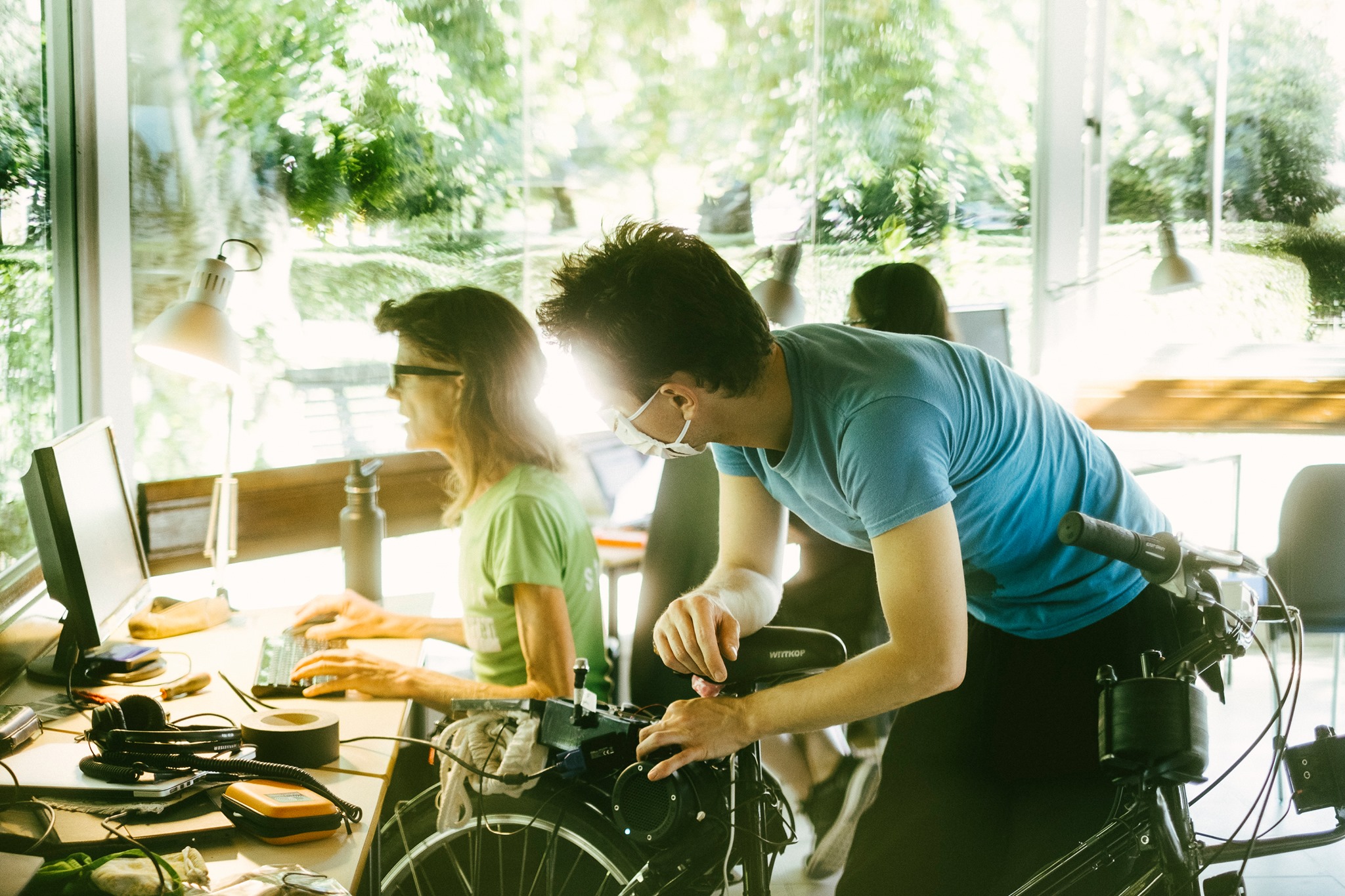

Based in the glass hub in the Campo Mártires da Pátria central Lisbon with four EnviroBikes ready to go, passers by were invited to go ride one locally, then bring it back to us to download and visualise the air particulate data gathered including GPS trace. Over the week this meant that, with riders input, we could gradually accumulate all the rides data, so beginning to move towards a new understanding of the spread and variety of air quality in central Lisbon.   This video shows a couple of riders assessing with us what happened on their ride.

120111665_1113964292331640_2219765560068745797_o
nostrilsfromfoam

EnviroBike is simply a sonic bike that carries an air pollution sensor on its handlebars within a small box with nostrils that enables its fan to ‘breathe’ the passing air in and out.  Using a laser the sensor can then measure the amount and size of particulate matter (PM) found in the air, including the ‘dangerous’ PM2.5 and below in nine different data streams.



This data is also fed into Pure Data modules housed in the Raspberry Pi in the sonic bike box on the back of the bike which trigger or process stored sounds depending on data levels received and how the PD patch is designed. The fundamental PD system used is MoSoLab built by Federico Visi for the sonification project with sonic kayaks June 2020, and then developed with the making of the prototype EnviroBike in Berlin.

READ ABOUT OUR SONIFICATION PROCESS.

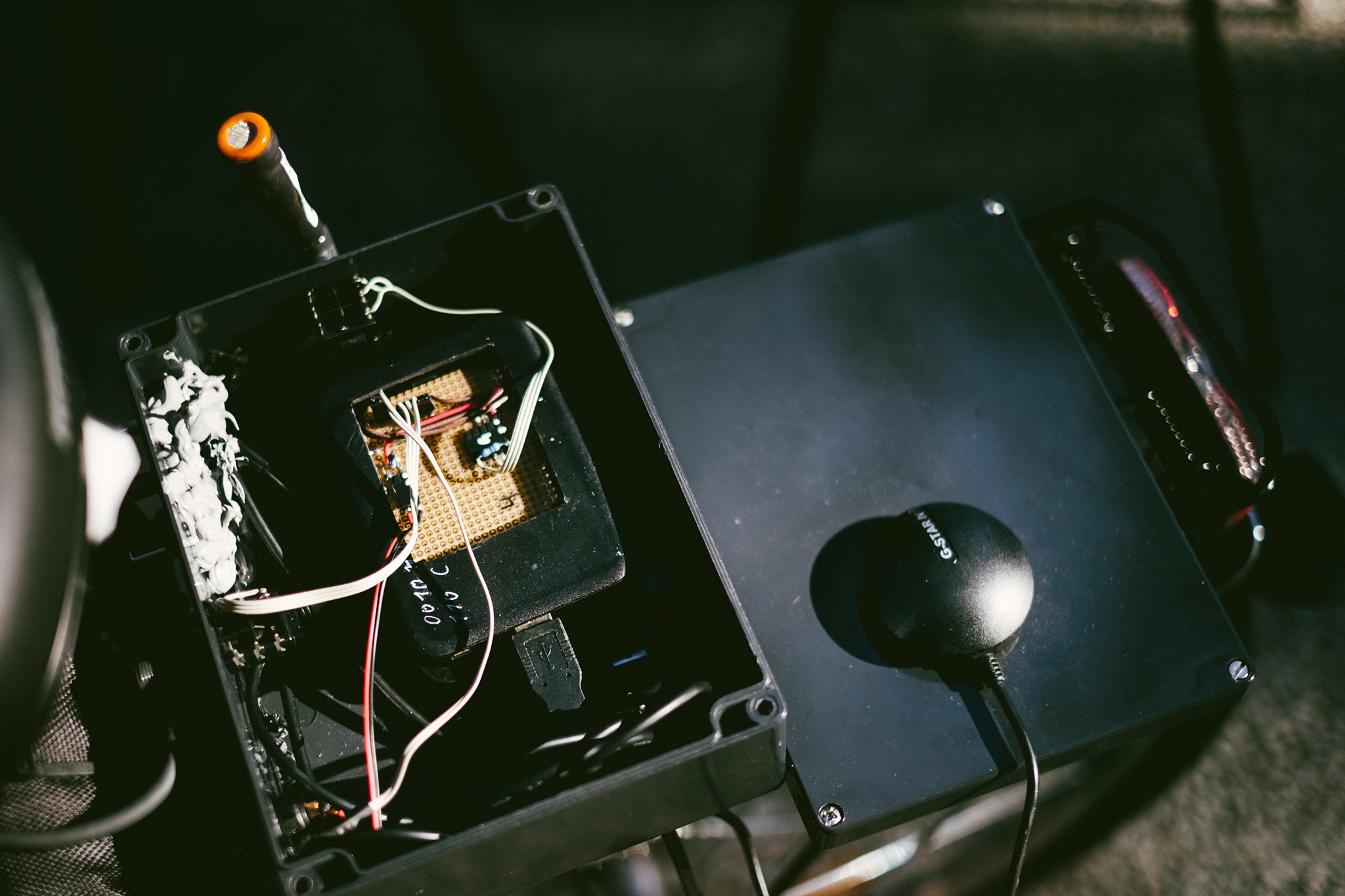

The sonic bike box also has a gas sensor connected, each bike measuring a different gas ; either the amount of carbon monoxide or methane or hydrogen or alcohol present.  A bulk of the Lab’s work then was to develop the response of these sound processing patches, ie. the live sonification system of PM levels and gas,  to give not only a rewarding audio experience to the rider but some understanding of the air quality as they rode. With four EnviroBikes in the Lab, different sonic characters were gradually built onto each one, terrifying or relaxing or thrilling riders with the thunderous rackets of parping fog horns or panting gasping bike or cyber woman calmly presenting the effects of invisible molecules on the human animal or dying granulated organ in dense traffic and oft outside that particular hotel (?) half way up the Avenue Almirante Reis, inbeteen the many calm moments of clean fresh air of course.

riderreturn
20200924_165625

Overall, EnviroBike riding is a more interactive and investigatory experience for the rider now cycling through a city, able to hear as well as be inspired to think about the air space they were riding through. No longer required to follow a certain path as with the regular sonic bike, riders also wanted to explore their local neighbourhood and discover how polluted or not their local streets were, and where and when do the peaks arise.

Often outcomes were of surprise as the air was not necessarily polluted behind a car, but maybe more past a small restaurant cooking in the evening, or on the corner of a park where there were many pollinating trees and buses. Temperature, humidity, time of day, height above sea level, wind and the movement of air as well as architectural space, traffic type and density all fed into these results, inspiring much discussion into what are our local airspaces made of.

EnviroBike was launched  at the Goethe-Institute, opening Lisboa Soa 2020 21.09.20  in Lisbon, Green Capital for Europe 2020. It was generously received by audience and environmental scientists alike. It has a future. We will let you know.

envirobikelablaunch2
lisalaunch2
fedelaunch
envirobikelablaunchbox
envirobikelabwork
envirobikelabwork4
lisbonskies

Many thanks to all at Lisboa Soa, the Göethe Institute , the riders, the volunteers and the environmental scientists who came and encouraged us. Also to Vera Marmelo for these wonderful images.

lisbonapmonitor
